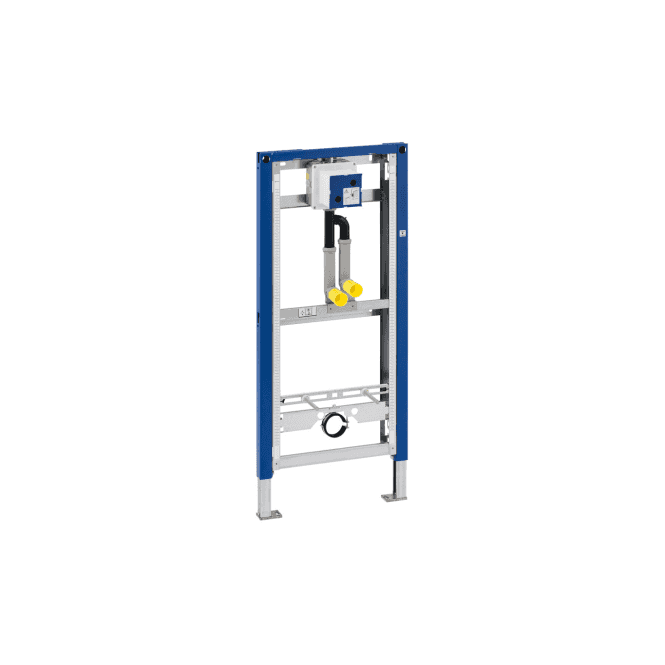

Geberit Duofix Frame for Urinal With Pipe Interrupter-1300mm x 500mm-Blue

• Crossbars with centring marks can be adjustable without tools
• Premounted stop valve with throttle and built-in conduit pipe to rinse the pipeline
• Fastening for inlet Ø 32mm adjustable height
• Maximum operating temperature of water 30° C
• Water supply connection on the top on the concealed housing
• Terminal for electrical connection in concealed housing
• Protection box for service opening 105 x 105mm can be cut to length without tools
• Universal concealed housing for Geberit urinal flush controls
• For floor constructions 0–20 cm
• For installation of Geberit urinal flush controls (from year of manufacture 2009)
• Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
• Self-supporting powder-coated frame
• Frame with Ø 9mm drilling holes for fastening in wood frame construction
• Please refer installation guide PDF from below.
• For mounting urinals
• Urinal fasteners M8 width and adjustable height
• Flush bend fitted with pipe interrupter
• For installation in part- or room-height prewall installations
• Maximum test pressure of water: 16 bar
• Water supply connection R 1/2"
• Fastening for connection bend, adjustable height and sound-absorbing
• Galvanized adjustable feet: 0–200mm
• For installation in part- or room-height Geberit Duofix system walls
• Straight connector made of PVC Ø 50mm
• Constructed from using steel material
• Comes with pipe interrupter
• Flow rate at 1 bar without flow limiter: 0.3 l/s
• Universal prewall brackets [Optional]
• Application
• Connection pipe between inlet Ø 32mm and urinal with seal to urinal
• For drywall construction
• Urinal trap Ø 50mm with seal on urinal
• Additional fastening possible for urinal with accessories
• Refer technical drawing for more technical specification
• For installation in room-height installation walls
• Fastening material
• Maximum test pressure of air / inert gas: 3 bar
• Flow pressure: 1-8 bar
• Flow rate at 1 bar with flow limiter: 0.24 l/s
• Non-slip leg supports with Rotatable foot plates
• 2x protection plugs
• 2x threaded rods M8
• Protection box with cover
