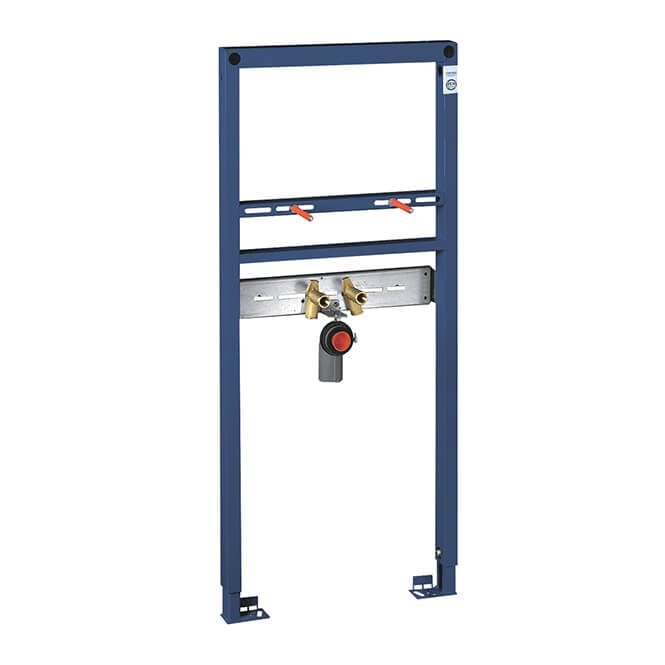

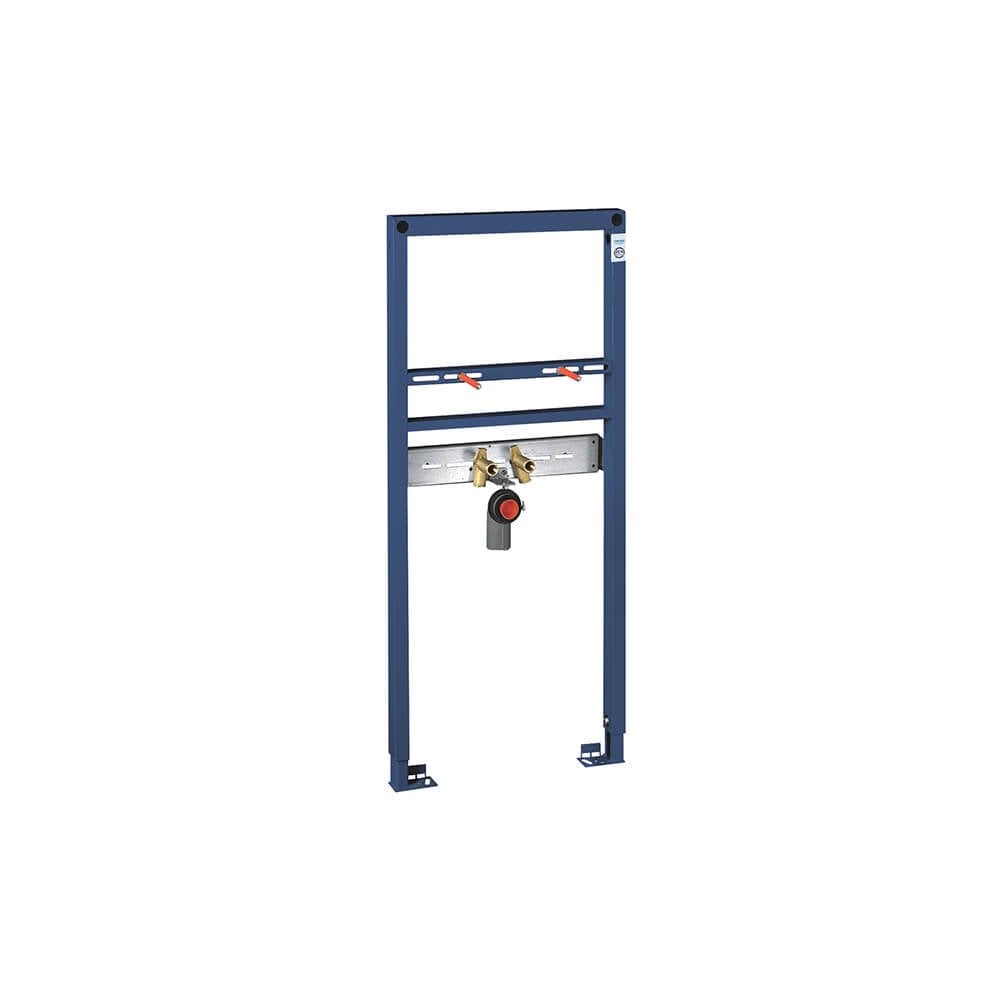

Grohe Rapid SL Wall Hung Basin Support Frame 1.13m – Heavy Duty 150kg Steel Frame (38554001)
The Grohe Rapid SL Support Frame for Wall Hung Basin (38554001) is a premium-grade concealed steel frame engineered for secure and reliable basin installation. Designed specifically for single tap hole wall-hung basins, this robust support system delivers exceptional strength, durability, and installation efficiency.
Built from high-quality powder-coated steel, the frame offers a load-bearing capacity of up to 150kg, ensuring long-term stability for modern bathroom basins. Its 1.13m installation height makes it suitable for a wide range of wall and stud partition installations, giving flexibility across residential and commercial bathroom projects.
Featuring GROHE QuickFix® technology, installation is significantly faster and simpler compared to traditional support systems, helping reduce labour time and installation complexity.
The frame also includes precision-engineered components such as a 50mm PE outlet bend, 32mm seal compatibility, and two noise-protected ½" fitting connections, ensuring quiet, efficient, and reliable operation.
Key Features
Designed for single tap hole wall-hung basins
Strong powder-coated steel construction
High load capacity up to 150kg
1.13m standard installation height
Suitable for on-the-wall and stud wall installations
GROHE QuickFix® system for faster installation
Adjustable fixing bolt positions for flexible setup
50mm PE outlet bend included
32mm seal compatibility
2 noise-insulated ½" connection fittings
Important Note
Please note that Grohe Rapid SL Front Wall Brackets (3855800M) are sold separately.
