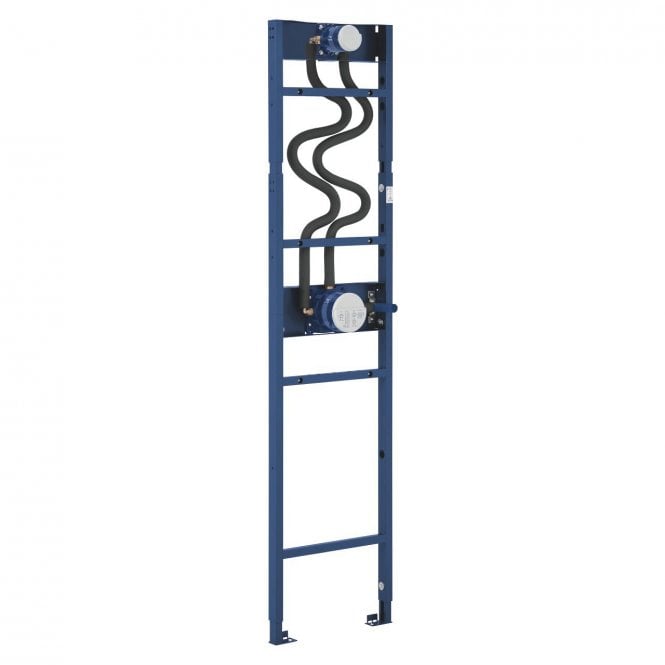

GROHE Rapido Shower Frame Duo – The Complete Solution for a Concealed Shower System with 3 Outlets
The GROHE Rapido Shower Frame Duo is the ideal solution for installing a concealed shower system in your dream bathroom. This sturdy, powder-coated, self-supporting frame comes fully pre-assembled, offering a simple and comprehensive setup. The package includes wall outlets for both hand and head showers*, mixed water pipes, a GROHE Rainshower Universal rough-in box with two inlets for a head shower (each with a maximum flow rate of 9.5 l/min), and the GROHE Rapido SmartBox universal rough-in box with two bottom inlets. It’s perfectly compatible with our Grohtherm concealed shower systems (sold separately).
The installation process is easy and designed for on-the-wall or dry-cladding installations**. The frame’s installation depth is 67 mm from the rough wall to the frame front, and the finish depth is adjustable from 77 mm to 107 mm. You can also adjust the height of the head shower outlet by 180 mm for added flexibility. The set includes sealing fleeces, with leak testing completed at the factory.
*Compatible with GROHE shower outlet elbows with male connection threads (1/2"). **For on-the-wall installation, please order wall brackets (1039999990) separately.
Product main features
for shower installations with one hand shower and a duo spray head shower
pre-mounted rough-in set GROHE Rapido SmartBox (35 604)
pre-mounted rough-in set 9.5 l/min for head shower (26 484)
pre-mounted wall outlet for hand shower
pre-mounted and insulated mixed water pipes
for on-the-wall installations or dry-cladding
powder coated steel frame, self-supporting
completely pre-assembled
depth adjustable
2 inlets below, 1/2"
min. installation depth (from rough wall to end finish) 77-107 mm
min. installation depth (from rough wall to frame front) 67 mm
head shower outlet height adjustable by 180 mm
sealing fleeces
leak test done ex factory
suitable for concealed 3-function trim sets in combination with GROHE Rapido SmartBox
suitable for GROHE shower outlet elbows with male connection threads, 1/2"
suitable for Rainshower SmartActive 310 2-spray head shower with 430 mm shower arm
perfect fit for Grohtherm concealed shower systems 103 997 0000 and 103 998 0000
for on-the-wall installation please order wall brackets 103 999 9990 (sold separately)
professional edition
