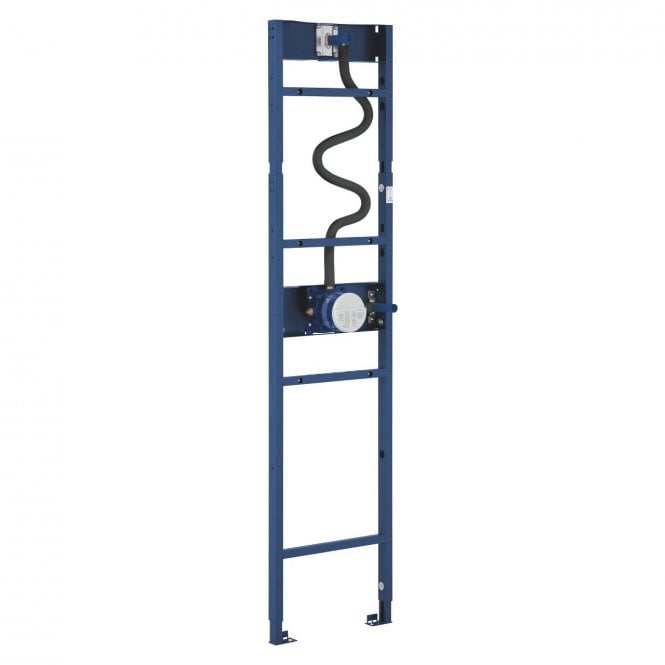

Grohe Rapido Shower Frame Element for Mono Concealed Shower Installation

GROHE Rapido Shower Frame Mono – The Ultimate Solution for a Seamless Concealed Shower System with Two Outlets

Transform your bathroom with the innovative and robust GROHE Rapido Shower Frame Mono, the ideal choice for installing a concealed shower system with two outlets. This self-supporting, powder-coated frame is fully pre-assembled, making it a convenient all-in-one solution. The package includes wall outlets for both hand and head showers*, mixed water pipes, and the GROHE Rapido SmartBox universal rough-in box with two bottom inlets—all pre-mounted for a hassle-free installation.

Designed to be compatible with the GROHE Grohtherm concealed shower systems (sold separately: 1039950000 and 1039960000), this frame ensures an easy and reliable setup. Whether you're opting for on-the-wall installation or dry-cladding**, the mounting process is simple.

Installation depth from the rough wall to the front of the frame is 67 mm minimum, with a variable finish depth ranging from 77 mm to 107 mm. The head shower outlet height is adjustable by 180 mm for added customization.

Sealing fleeces are included, and the product undergoes a factory leak test for your peace of mind.

Please note:

• Compatible with GROHE shower outlet elbows and shower arms featuring male connection threads (1/2").
• Wall brackets (1039999990) are sold separately for on-the-wall installations.

·         Product main features

·         for shower installations with one hand shower and a Mono head shower

·         pre-mounted rough-in set GROHE Rapido SmartBox (35 604)

·         pre-mounted wall outlets for hand and head shower

·         pre-mounted and insulated mixed water pipes

·         for on-the-wall installations or dry-cladding

·         powder coated steel frame, self-supporting

·         completely pre-assembled

·         depth adjustable

·         2 inlets below, 1/2"

·         min. installation depth (from rough wall to end finish) 77-107 mm

·         min. installation depth (from rough wall to frame front) 67 mm

·         head shower outlet height adjustable by 180 mm

·         sealing fleeces

·         leak test done ex factory

·         suitable for concealed 2-function trim sets in combination with GROHE Rapido SmartBox

·         suitable for GROHE shower outlet elbows with male connection threads, 1/2"

·         suitable for GROHE shower arms with male connection threads, 1/2"

·         perfect fit with Grohtherm concealed shower systems 103 995 0000 and 103 996 0000

·         for on-the-wall installation please order wall brackets 103 999 9990 (sold separately)

·         professional edition

Upgrade your shower experience with the GROHE Rapido Shower Frame Mono—effortless, efficient, and built for precision.
