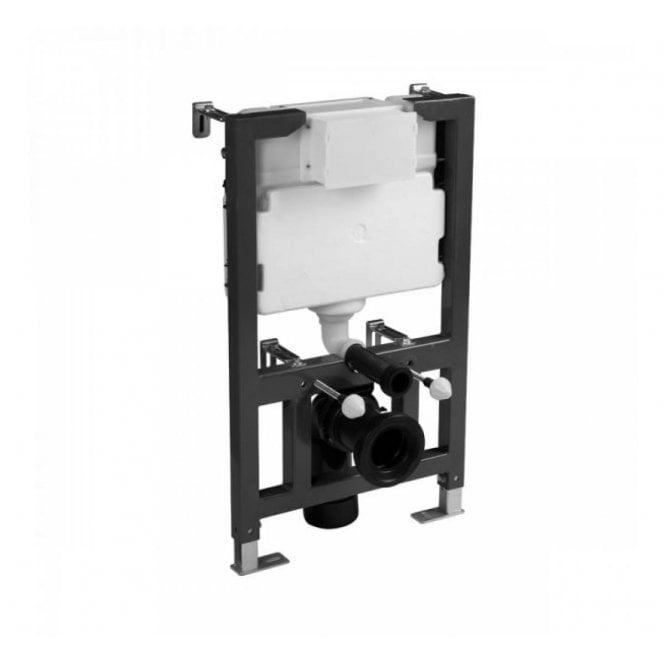

This wall hung frame is suitable for use with 600mm and wider back to wall WC furniture units. The frame comes complete with an integral 6/3 litre dual flush cistern and an anti-condensation jacket for insulation.
The 0.82M wall hung frame has an adjustable depth 167 - 215mm and has adjustable height legs (200mm adjustment), the frame features top and front access and flush plate mounting options. The wall hung frame has a 0.2 - 10.0bar working pressure range.
You can also use the Tavistock Ellipse push plate or square dual flush button with the wall hung frame. (see below for pricing)
Please note: You also need to purchase the furniture adaptor kit when using the frame in furniture installations.
For use with 600mm and wider furniture WC units
Adjustable depth 167 - 215mm
Adjustable height legs (200mm adjustment)
6/3L pneumatic flush valve and side entry 1/2" (female) inlet valve
Top and front access, flush plate mounting options
Polystyrene anti condensation jacket
0.2-10.0bar working pressure range
Brackets, fixings and 1st fix protective covers included
Use the optional furniture adaptor kit (sold seperately) when using the frame in furniture installations
